Morimoto M-LED – “Chip Flip” Modification Overview

The brand new Morimoto MLED has landed and we got right to testing out this modification that was rumored to make the unit “better”. We’re going to go over how to do this modification and what to expect once its done.

***WARNING – MORIMOTO HAS STATED THIS MAY VOID YOUR WARRANTY***

The modification is easy. You use a Torx T10 screw driver to remove the two screws holding the projector bowl and the internals are exposed.

 photo DSC_9552flipped.jpg

You’ll see another small chip held down by two T10 screws. Remove the screws and gently unclip the connector. The factory orientation of this chip is with the LED chip pyramid facing the threaded mount. We need to remove it, and flip it.

 photo DSC_9554flipped.jpg

Placed in a vise – we point the chip set point forward and we slot the holes to the left.

 photo DSC_9560flipped.jpg

Now we can screw it back in. Just make sure to lay the wires down flat so they do not effect the beam output.

 photo DSC_9562flipped.jpg

Back to the output and expectations of this modification. Here is a stock Morimoto M-LED bi-LED projector unit. You can see it has a very low hot spot and sort of a pencil beam pattern. The middle line is extremely intense. Everything to the left and right is drastically dimmer.

 photo DSC_9535.jpg

 photo DSC_9536.jpg

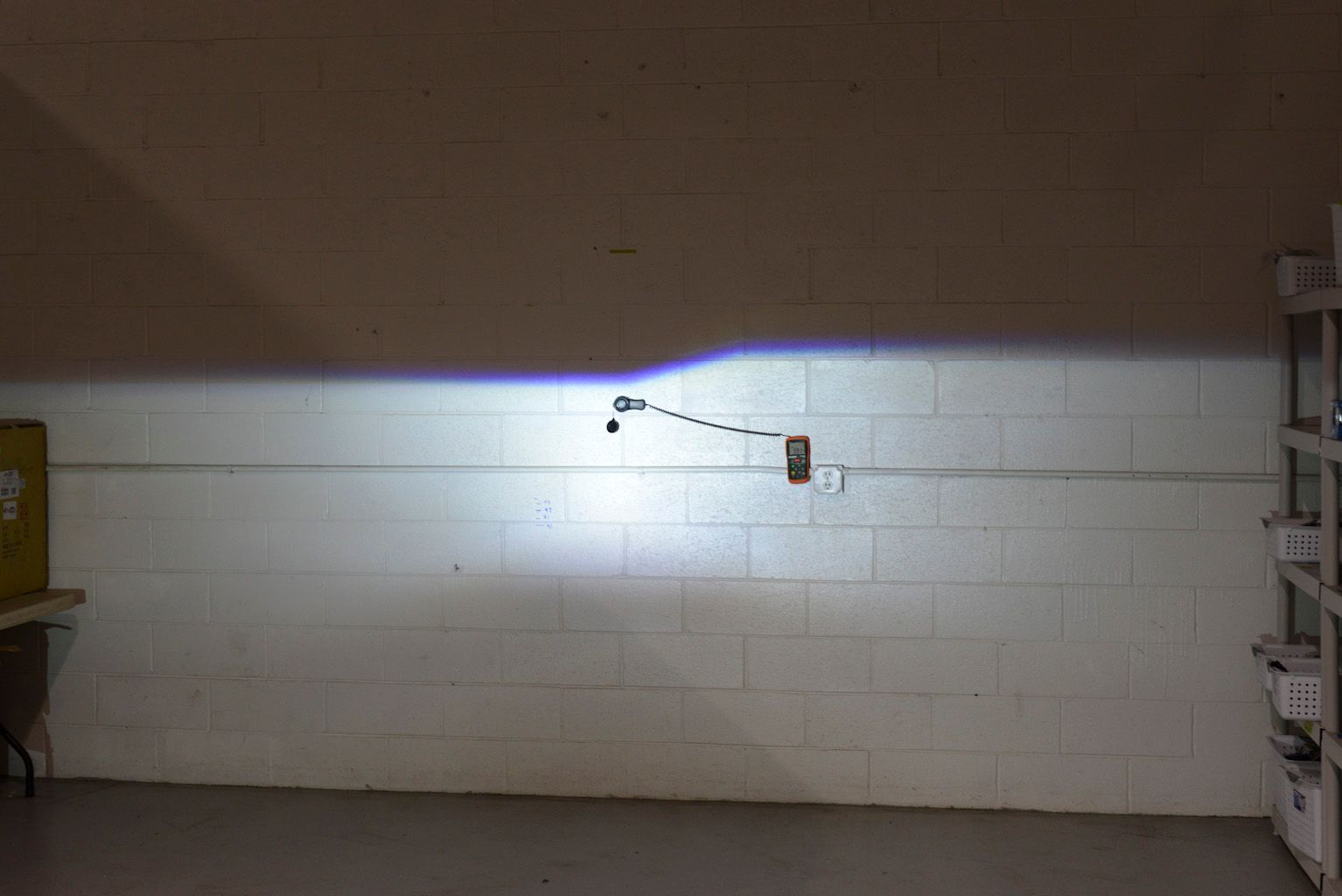

We get about the same reading right under the cutoff or way below it.
 photo DSC_9537.jpg

 photo DSC_9538.jpg

Just to the right – still under the cutoff – where you would typically see the highest intensity – we have a huge reduction of intensity.

hard to see, but its 439 Lux
 photo DSC_9539.jpg

 photo DSC_9538.jpg

 photo DSC_9541.jpg

High beams mode drops the shield, but it does not make the intensity any bright. The brightest area of this projector is very center weighted and directly under the center point.

 photo DSC_9542.jpg

high beam mode shows less than low beam mode
 photo DSC_9543.jpg

Now, onto the modified unit. Here is the output you can expect:
 photo DSC_9545flipped_1.jpg

Lowered exposure:
 photo DSC_9545flipped.jpg

467 Lux – This modification has resulted in a LOSS of light! But stick with us…
 photo DSC_9546flipped.jpg

High Beam:
 photo DSC_9549flipped.jpg

Lowered Exposure:
 photo DSC_9549flipped_1.jpg

411 Lux – High Beam Lux:
 photo DSC_9550flipped.jpg

Lets compare both – Stock vs flipped:
 photo DSC_9534_1.jpg

Lowered Exposure:
 photo DSC_9534.jpg

Our Final Thoughts….

Low Beam Performance:
While you do give up sheer intensity when doing this modification, a well balanced beam pattern is always better. The center area of the unmodified unit is about 20-30% brighter than areas right next to the center. The foreground light intensity is far too much and it will draw the eyes to this area instead of the distance and width – giving more of a tunnel vision effect. The modified version is much better balanced and seems to offer more width. Less foreground and better overall distribution.

High Beam Performance:
Neither version has exceptional high beam performance. We actually see less sheer intensity compared to any low beam figures. When comparing the Morimoto D2S 4.0 for example, high beam intensity doubles in lux when the projectors’ high beam is activated. Light is reserved for high beam use, while in the case of the MLED – they maximize only the low beam output.
